| Configuration | Description |
|---|---|
| WIDTH | Upto 2400mm. |
| LENGTH | As per requirement |
| ENDS | Open or Endless |
| EDGES | Cut or Molded / Protected |
| COVER THICKNESS | As per Customer Specification |
| COVER GRADES |
|

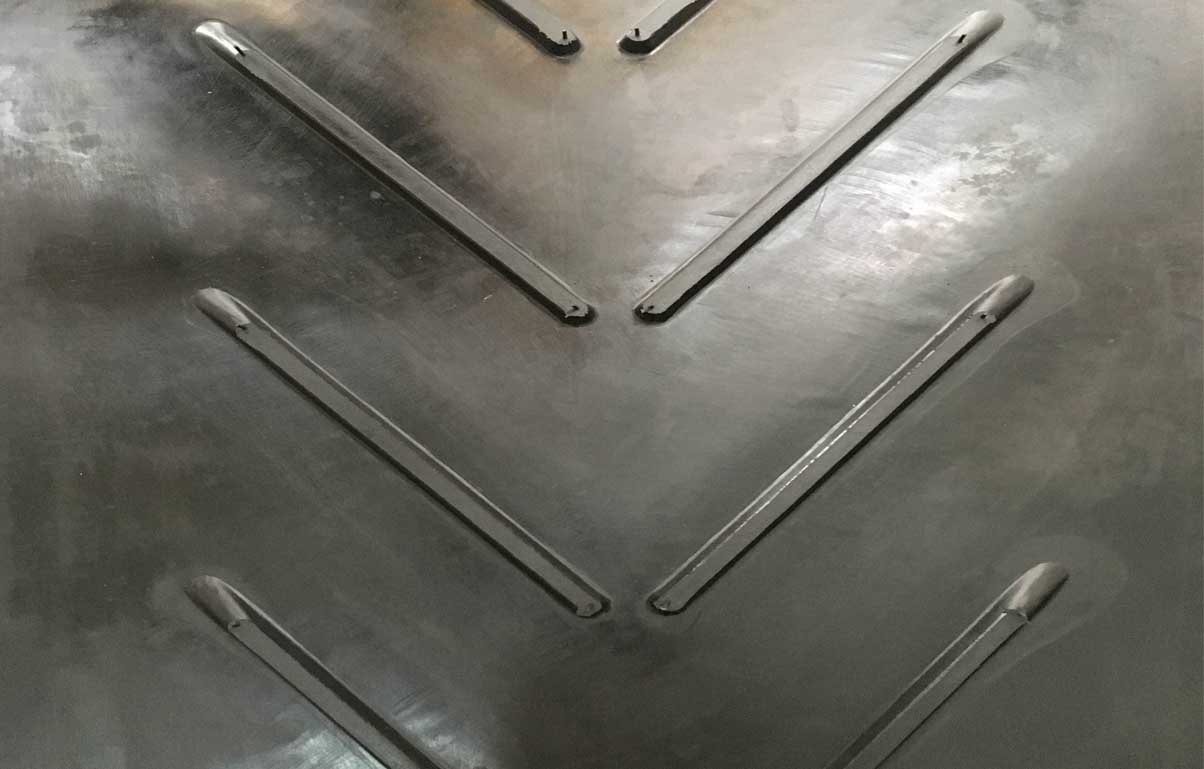

Slittable cleated belts have integrally molded cleats. Patterns are designed to aggressively transfer free-flowing material. Pattern choice depends on the material being carried and the design of the conveyor. Belt is available in 2 or 3 ply, MOR (Moderately Oil Resistant) compound.

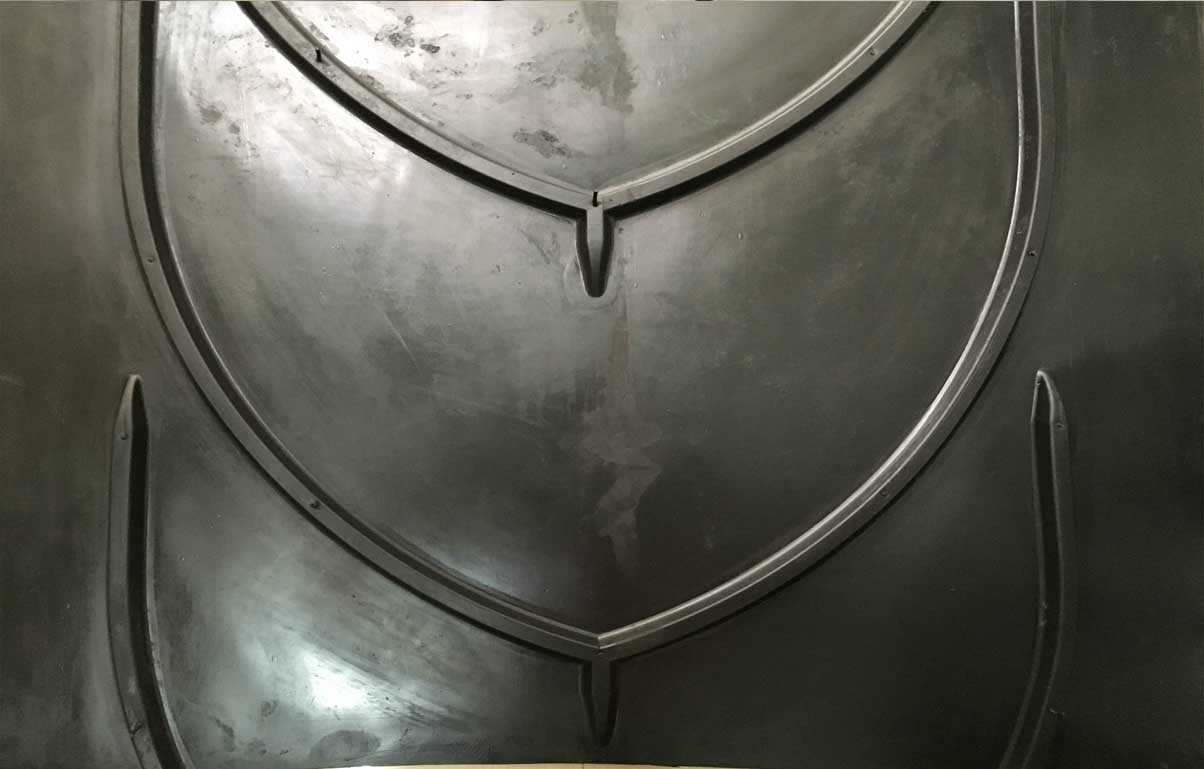

Chevron Y Cleat Belts are used primarily when the angle of incline becomes too steep for a smooth conventional conveyor belt. The belt is fitted with integrally mounded cleats which prevent the material from sliding backwards as would be the case with a smooth surface belt. Different cleat designs allow the carrying of many types of material, from bulk solids to unit loads.

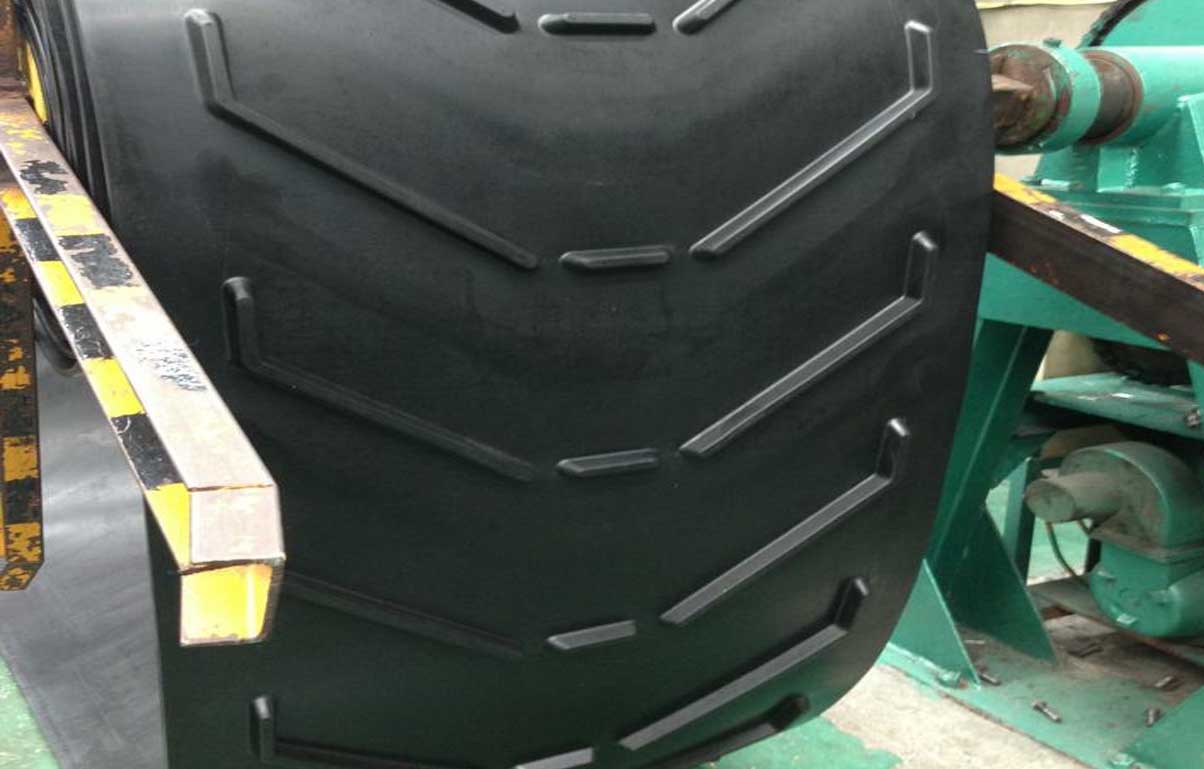

Oft times, it is necessary to convey at angles of incline that are steeper than the material normally wants to move. Continentals conveyor belting in many varied configurations that will competently accommodate that need. At angles of incline in the 15 to 25 degree range, the "chevron" or "straight cleated" belts illustrated here offer increased carrying capability at a very reasonable cost.

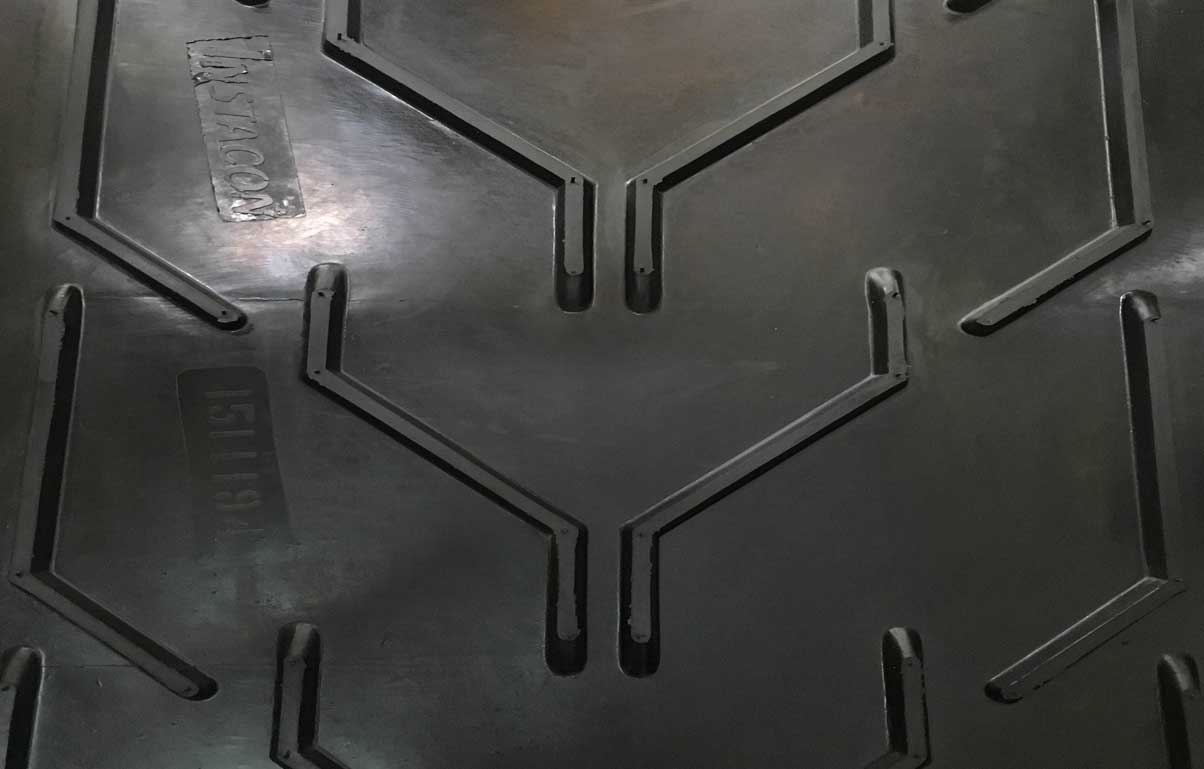

Y Cleat Belts are produced with integrally molded profiles fitted into the belt's top cover during manufacture. The shape of the chevron profiles has been carefully designed to assure excellent smooth return side support on full width return idlers and good self-cleaning properties. Incline angles achievable depend upon the material's characteristics and the type of belt selected.
